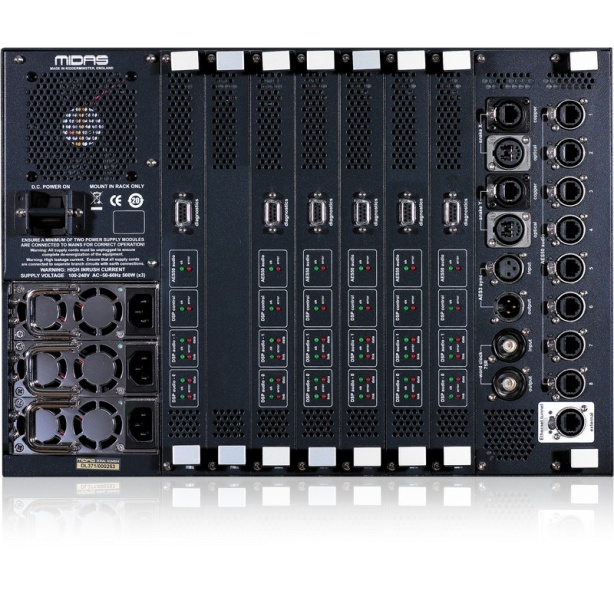

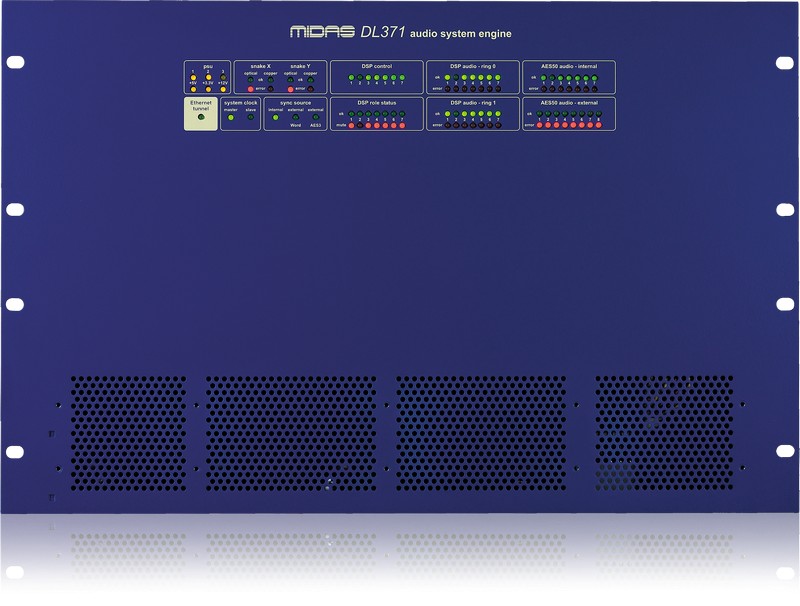

MIDAS DL371 PARA PRO9 DSP ROUTERS

SKU: T0492985002 Categoría: Procesadores

MIDAS PRO9 Audio System Engine with 31.6 Gigaflops digital signal processing performance
HyperMAC Router with 192 Bidirectional Channels over copper and optical fibre
Provides dual redundant snake connection to PRO9 Control Surface
Snake connections up to 500 m with optical fibre or 100 m with CAT5/5e cable
Internal dual redundant network ring topology with contra-rotating communication system
Fitted with 6 DL371A DSP cards as standard
Additional DL371A DSP card allows upgrade to N+1 redundant operation

40 bit floating point processing with 96 kHz sample rate
Features Neutrik etherCON* AES50 and Ethernet control network ports
Dual-fibre Neutrik opticalCON DUO* connector used for optical fibre snake connection
Rugged 7U rackmount chassis for durability in portable applications
Three bay auto-ranging universal switch-mode power supply with N+1 redundancy
3-Year Warranty Program*
Designed and engineered in the U.K.
